Products / Hall Effect Linear Output 0 -10 VDC Speed Sensors

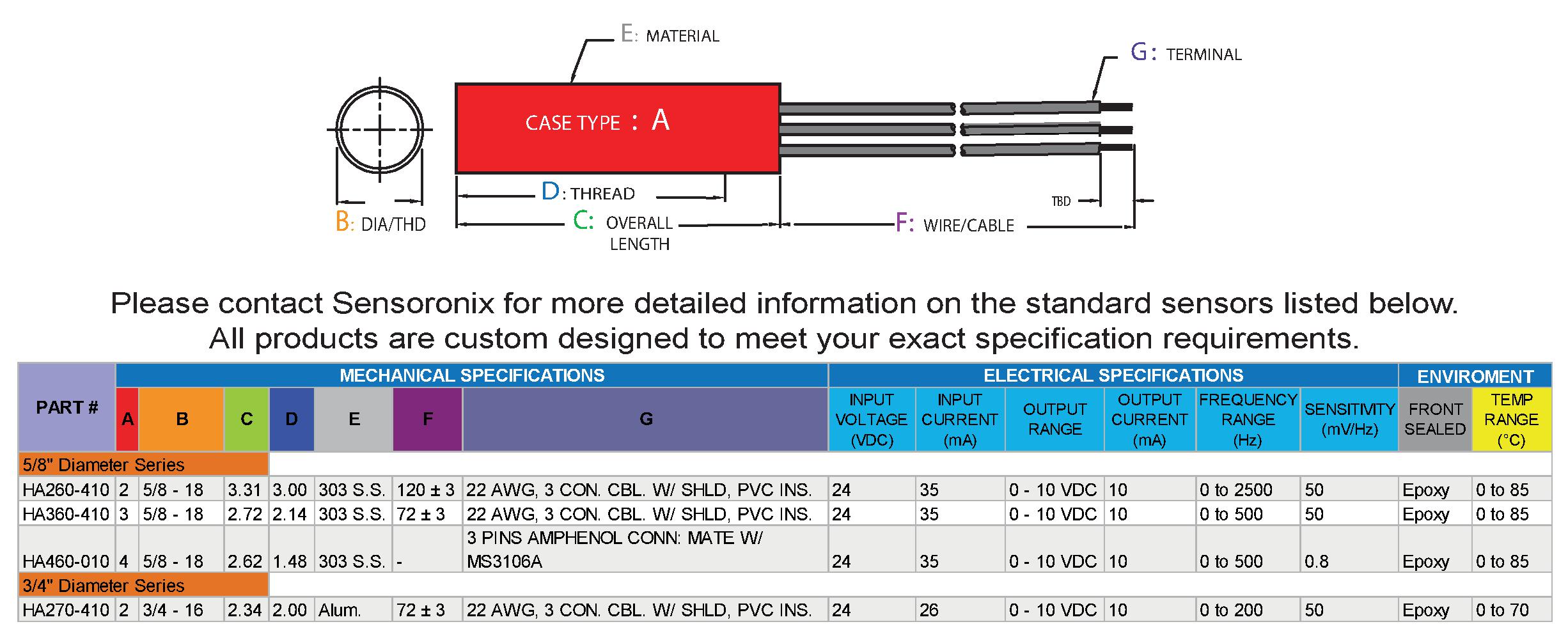

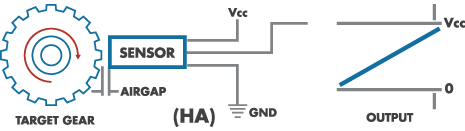

Hall Effect Linear Output 0 - 10 VDC Speed Sensors Diagram

Non-contact magnetic sensors that measure the distortion of magnetic field created by a ferrous target. These sensors are designed to convert a digital square wave signal produced by a ferrous target wheel to an analog ( linear) DC voltage.



Product Specification Range
A. Electrical Performance
1. Supply Voltage : (Vcc) 24 VDC
2. Target : Ferrous material, single tooth or slot To 48 D.P
3. Airgap : 0.005” To 0.120”(0.126mm to 3.045mm)
4. Speed Range : 0- 15KHZ
Optional:

0 – 20 KHZ

5. Output Signal : Linear 0 to 10 VDC.
6. Protection : Reverse Polarity.
Optional : EMI, EMC, Input transient, and short circuit protections
7. Operating Temperature : -4° F to +221° F (-20°C to 105°C)
Optional : -40°F to + 302°F (-40°C to +150°C)

B. Industry / Application
Automotive Engine speed measurement
Dynamometer
Aerospace
Flow meter
Machinery
Transmition

C. Features and Benefits
  • Non- Contact
• Reverse polarity protected
• Wide Speed Range
• Customized for most environment
• Not sensitive to the orientation
