Products / Digital Speed Sensors (HS)

Non-contact magnetic sensors that measure the distortion of magnetic field created by a ferrous target. Hall-Effect Zero speed sensors provide very precise measurements of movement even at zero speed which makes the Hall-Effect zero speed sensors ideal for speed measurements. Hall-effect zero speed sensors provide digital output with constant amplitude signal regardless of variation of the speed.

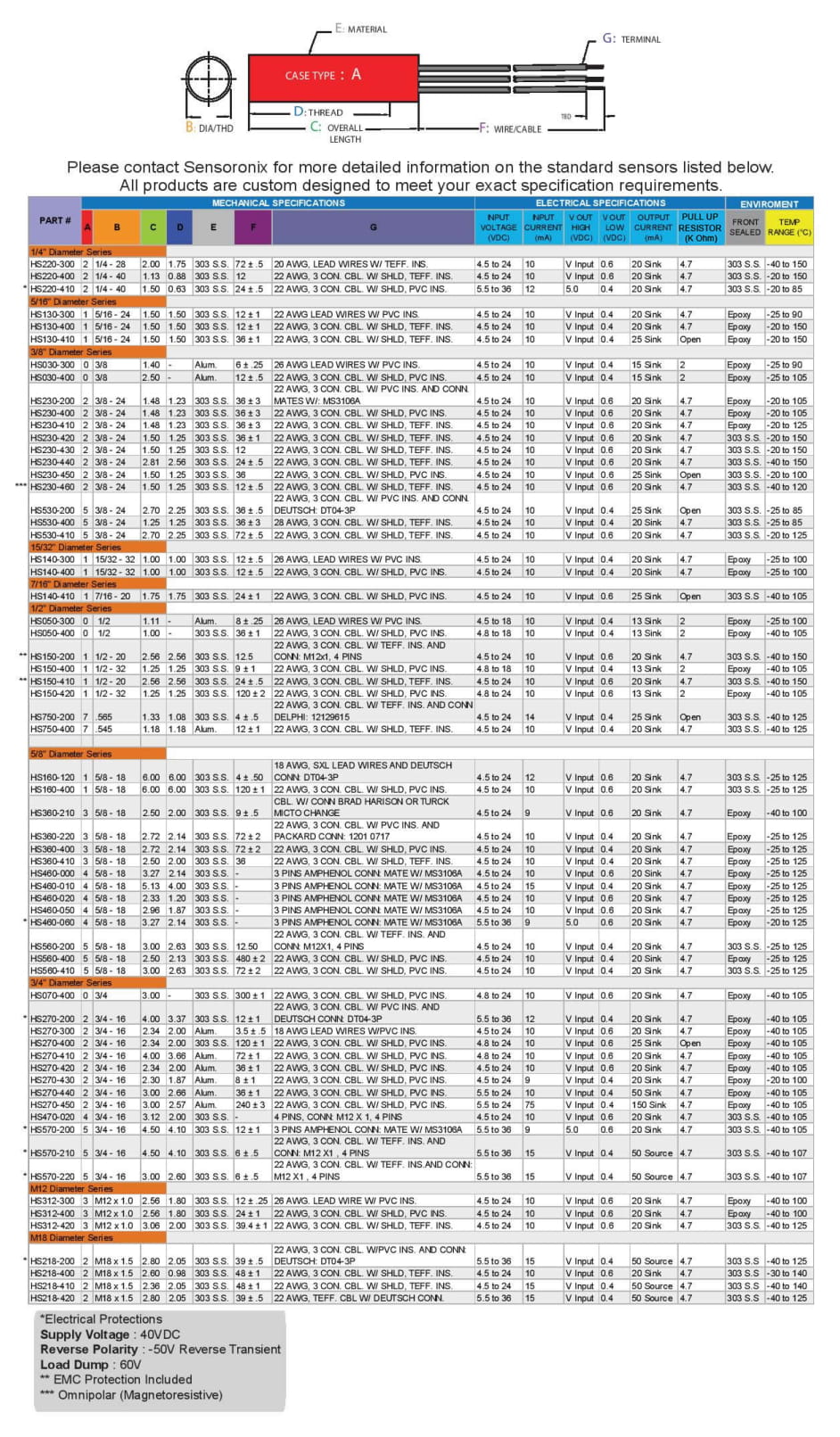

Product Specification Range
A. Electrical Performance
1. Supply Voltage : (Vcc) Standard 4.5 VDC to 24 VDC.
Optional : 5.5VDC to 36VDC.
2. Target : Ferrous material, single tooth or slot To 48 D.P
3. Airgap : 0.005" To 0.120" (0.126mm to 3.045mm)
4. Speed Range : 0- 15KHZ
Optional: 0 – 20KHZ
5. Output Signal : NPN Open collector with 4.7k ohms internal pull-up Resistor (Digital).
Optional : No pull-up resistor.
6. Output Voltage : Low= 400mV Max
High= Follows Vcc
Optional : Low= 400 mV Max
High= 5 VDC
7. Output Current :
(I sink)
20mA continuous operation
Optional : 50mA
8. Output Duty Cycle : 50% ±15% with equal size gear teeth and space between them
9. Protection : Reverse Polarity.
Optional : EMI , EMC, Input Transient Protection, Short circuit protection.
10. Operating Temperature : -4° F to +221° F (-20°C to 105°C)
Optional : -40° F to +302° F (-40°C to 150°C)

B. Industry / Application
Automotive Engine Speed Measurement
Dynamometer
Crankshaft
GearBox Speed Sensor
Electric speedometer
Flywheel speed sensing
High Performance vehicles speed and position sensing
Aerospace
Electric Power Generator Motor Speed Measurement
Turbine Flow Measurement
Exercise Equipments Motor speed sensor
Flow Meter
Locomotive Crank shaft, Cam shaft
Machinery
Tachometer
Off-Highway

C. Features and Benefits
  • True Zero Speed Sensing.
• Constant Amplitude square wave (Digital) output
• Reverse polarity protected
• Wide Speed Range
• Customized for most environment
• Not sensitive to the orientation
