Products / Hall Effect Displacement Sensor with Linear 0-5 VDC Sensors

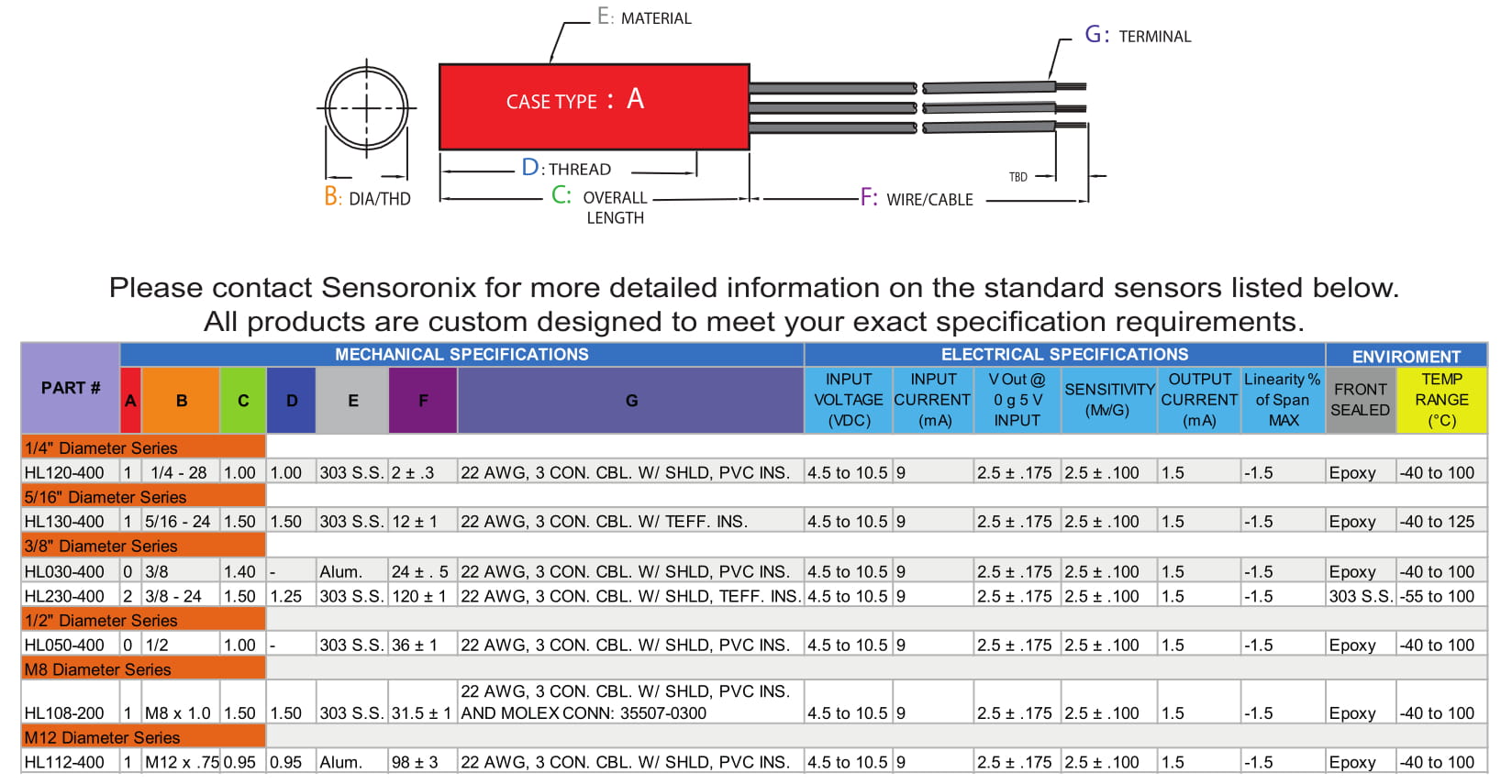

Hall Effect Displacement Sensor with Linear 0-5 VDC Sensors Diagram
Non- contact magnetic sensors that are designed to respond to a wide range of positive or negative magnetic fields and can sense relatively small changes in a magnetic field. By having magnet as a target, this unit produces a Ratio-metric Rail-To-Rail linear output. It also has an internal amplifier to boost the output to a higher level. These sensors are ideal for applications such as magnetic flux measurement, displacement, and linear output rotary measurement.


Product Specification Range
A. Electrical Performance
1. Supply Voltage:
(Vcc)
Standard 4.5 VDC to 6 VDC Max.
Optional: 5.5VDC to 36VDC.
2. Target: Permanent magnet, with customer long Range Sensing
3. Airgap: 0.005" To 0.750" (0.126mm to 19.03mm)
4. Output Voltage Linear, 0 t0 5 VDC (2.5 VDC  TYP. at 0 Gauss)
Optional : Linear, 0 t0 10 VDC (5 VDC TYP. at 0 Gauss)
5. Sensitivity: 1.30 mV/G Max
7. Supply Current: 14 mA Max
8. Output Current: 10 mA
9. Bandwidth: 23KHZ Typ.
10. Operating Temperature: -4°F to +185°F (-20°C to +85°C)
Optional: -40°F to +302°F (-40°C to 150°C)
B. Industry / Application


Automotive:  Linear/ Rotary counting

Lab Test equipment: Flux measurement
Machine Tools: Distance measurement
All Automation systems in General.
C. Features and Benefits
  • Non- Contact
• No moving parts
• Customize for most environments
