Products / Variable Reluctance Speed Sensors with Complementary Outputs

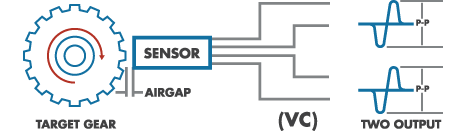

Reluctance (VR) Speed Sensors with Complementary Outputs Diagram

Non-contact magnetic sensors that measure the collapse of magnetic field due to the interruption by a ferrous gear tooth. These sensors provide two analog signal outputs (sine wave) that does not require an outside power source.  This sensor is suitable for speed sensing with a range from 30 to 1000 inches per second with a target gear from one tooth per revolution to 32 pitch gear.

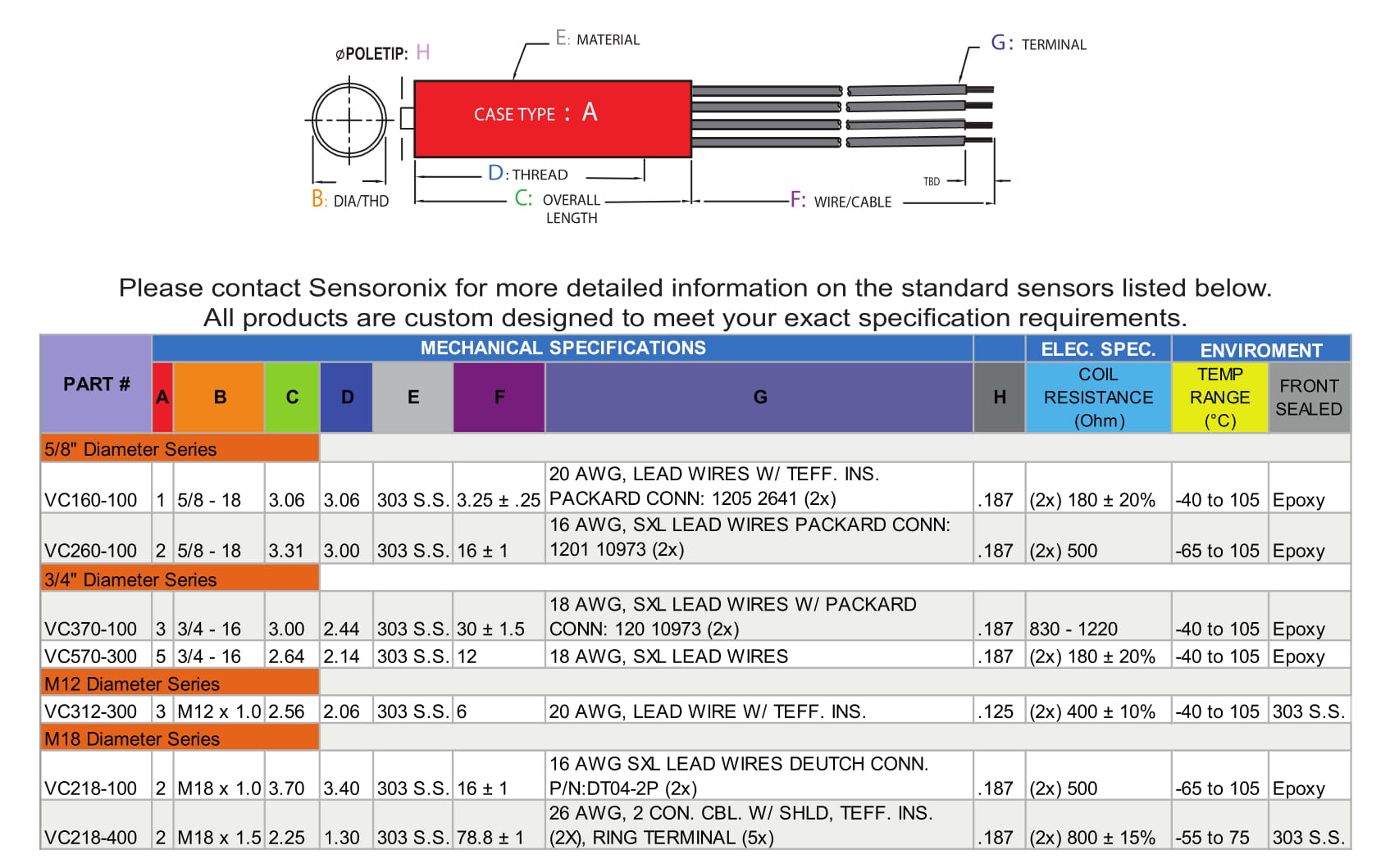

Product Specification Range
A. Electrical Performance
1. Resistance (R): 40 To 2000 Ohms.
2. Target: Ferrous material, single tooth or slot To 32 DP
3. Airgap: 0.005” To 0.150” (0.126mm to 3.807mm)
4. Speed Range: 30 to 1000 Inch/Sec.
5. Output Signal: Two identical sine wave.
6. Output Range (Vpp): 100 To 200 Vpp.
7. Operating Temperature: 32°F to + 158°F (0°C to +70°C)
Optional: -4°F to + 257°F (-20°C to +125°C)
B. Industry / Application
Automotive Engine Speed Measurement
Dynamometer
Crankshaft
Gear box Speed Sensor
Aerospace
Exercise Equipments

Motor Speed Measurement

Tachometer
Locomotive
Power Generator

Motor Speed Measurement, Turbine Flow Measurement

Tachometer
Off-Highway
C. Features and Benefits
  • Non Contact
• Self Powered
• Wide Speed Range
• Simple Installation
